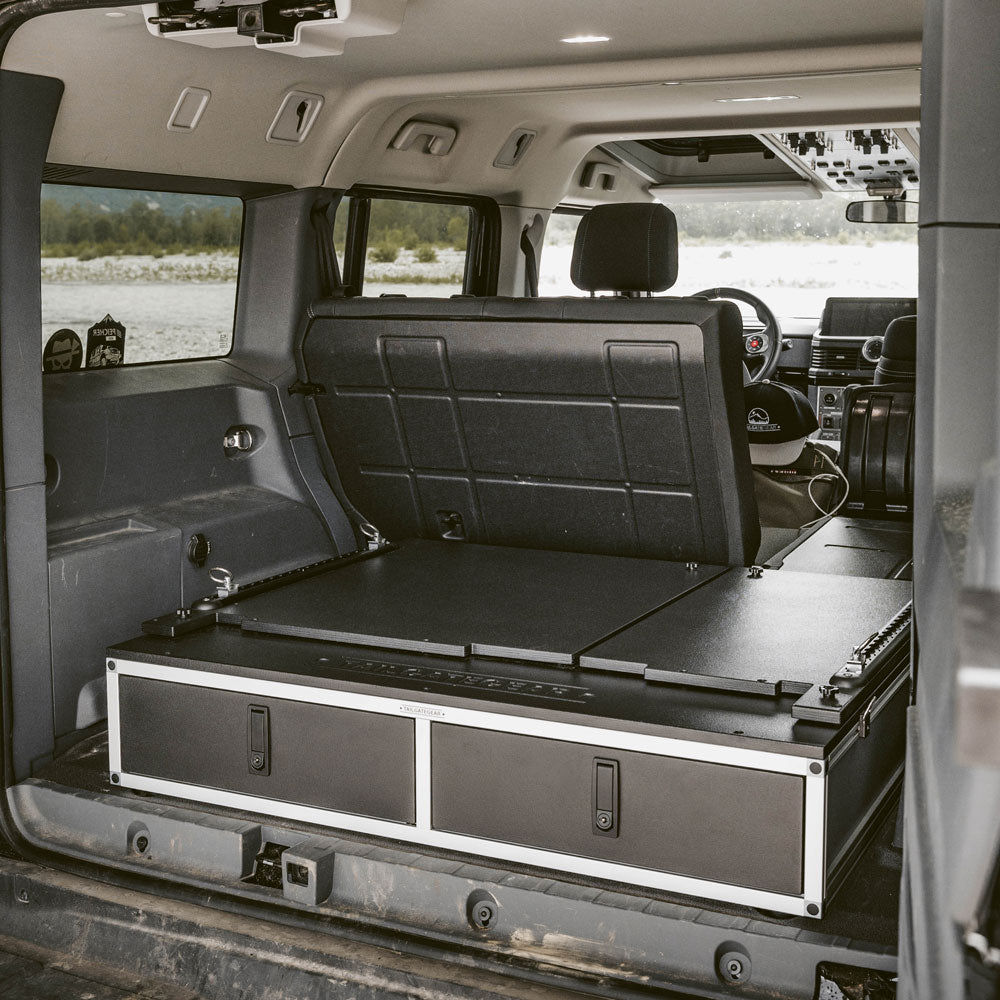

The Large double drawer is the base module of our line of pure storage space and it is dedicated to the Ineos Grenadier.
It is easy to install and can fit quite a bit of gear without compromising your trunk space.
The sturdy aluminum frame contains both drawers and keeps them safe and contained. It also helps you to neatly store the module when you don't need it in the car.
The sliders have have a 120kg load capacity and both drawers are lockable with a set of 2 keys.
As for all our modules, the panels are made of Dibond and the drawers are made of Scandinavian marine birch plywood finished with U-Pol Raptor polyurethane coating for durability.
Production time is between 21 and 28 days.
This one and all our modules are designed and made in ITALY.
Specs
External Dimensions: 1000mmW x 200mmH x 830mmL
Internal dimension (per drawer): 400mmW x 145mmH x 800mmL
Weight: 40kg for the top panel and 60/40 version / 30kg for the no panel option
Main features
- Aluminum profile frame for max strength and durability
- Heavy duty slides with 120kg max load
- 15mm birch marine plywood
- Raptor finishing for rugged look, toughness and easy-clean
- Aluminum laminated (Dibond) side and top panels, UV and water resistant
- Pop-up locks with 2 keys
Anchoring
We provide the kit to fit it and secure it utilising the existing airline tracks.
The module is bolted down but can still be easily removed should you need to utilise the full trunk.
FAQ
Q: Does the drawer come assembled?
A: Yes, all our modules are shipped already assembled with the necessary kit to install it. We also provide an instruction manual to secure the module to the trunk airline tracks.
Q: How do the drawer's partitions work?
A: The partitions can be moved to create smaller area within the drawer. They leave room to run cables from the front of the drawer to the back and also out form the back.
Q: How do the side and front panels work?
A: The side panels are movable (top part) and can pop out and be pushed back in. You can access the space between the module and wheel arches to store additional gear or install an air compressor, for example. The front side panels are bolted in and are perfect to install switches, gauges or run cables through them. they are easy to drill through.
Q: How can I use the top of the drawer?
A: If you purchased the no panel option, the top of the drawer can be use to store additional gear and it holds up to 40kg of weight. The top panels are slightly lower than the contour and that helps to keep bags and boxes from moving around.
If you purchase the top panel, the top and side panels or the 60-40 option, you can load extra cargo on top up to 100kg. Plus, the airline tracks can help you secure that load on top of the module.
Q: Can I upgrade the version after I have purchased one of them?
A: If you have purchased the Single top panel, no side panels, you can upgrade to the 60-40 but not add only the side panels. If you have purchased the No panel version, you can any of the upgrades.
Q: Can I connect this drawer to other Tailgate Gear modules?
A: It can be done if you purchase the top panel, top and side panels or the 60-40 version of the drawer. The top panel is pre-drilled to accomodate most of our modules, our standard and XL fridge slides.
Q: Do you customize sizes?
A: We do customize our modules. There are additional charges based on the modifications and the production time may increase.
Got more questions? Leave a message on our Contact page.
