Grenadier Trialmaster Configurator

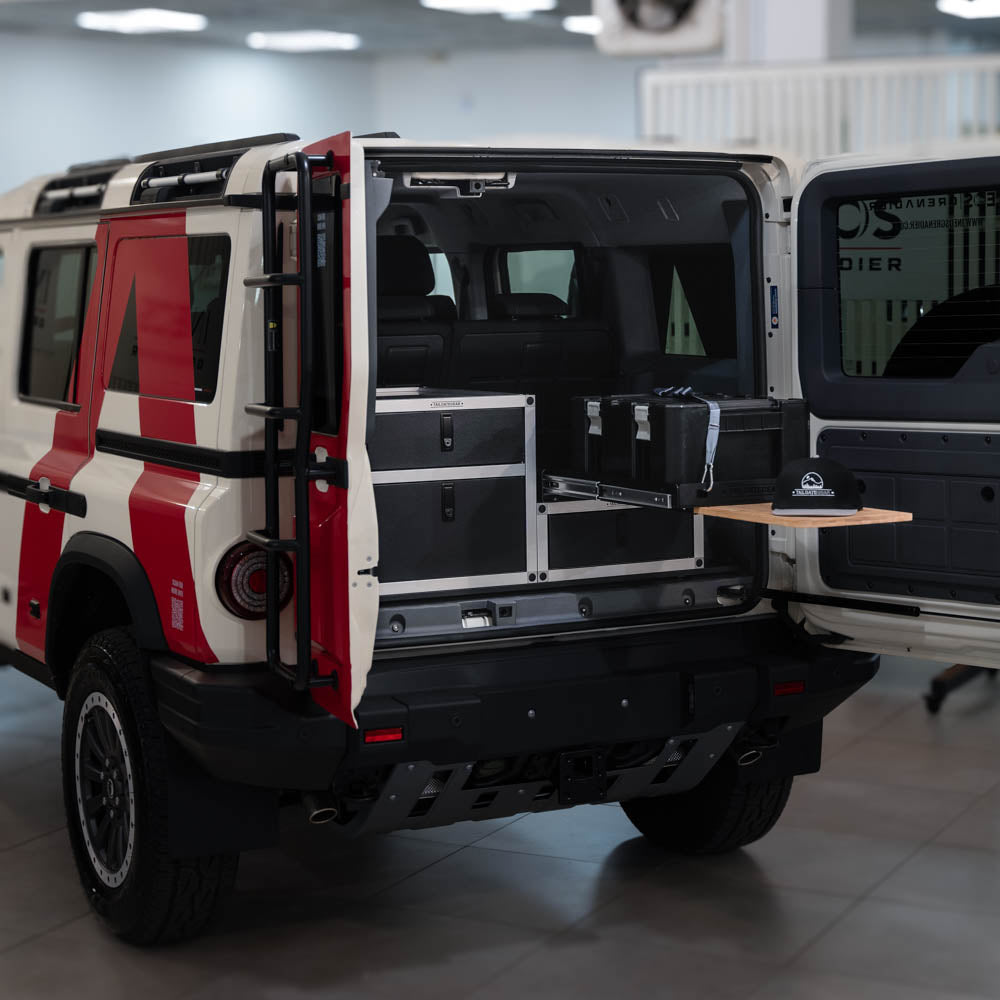

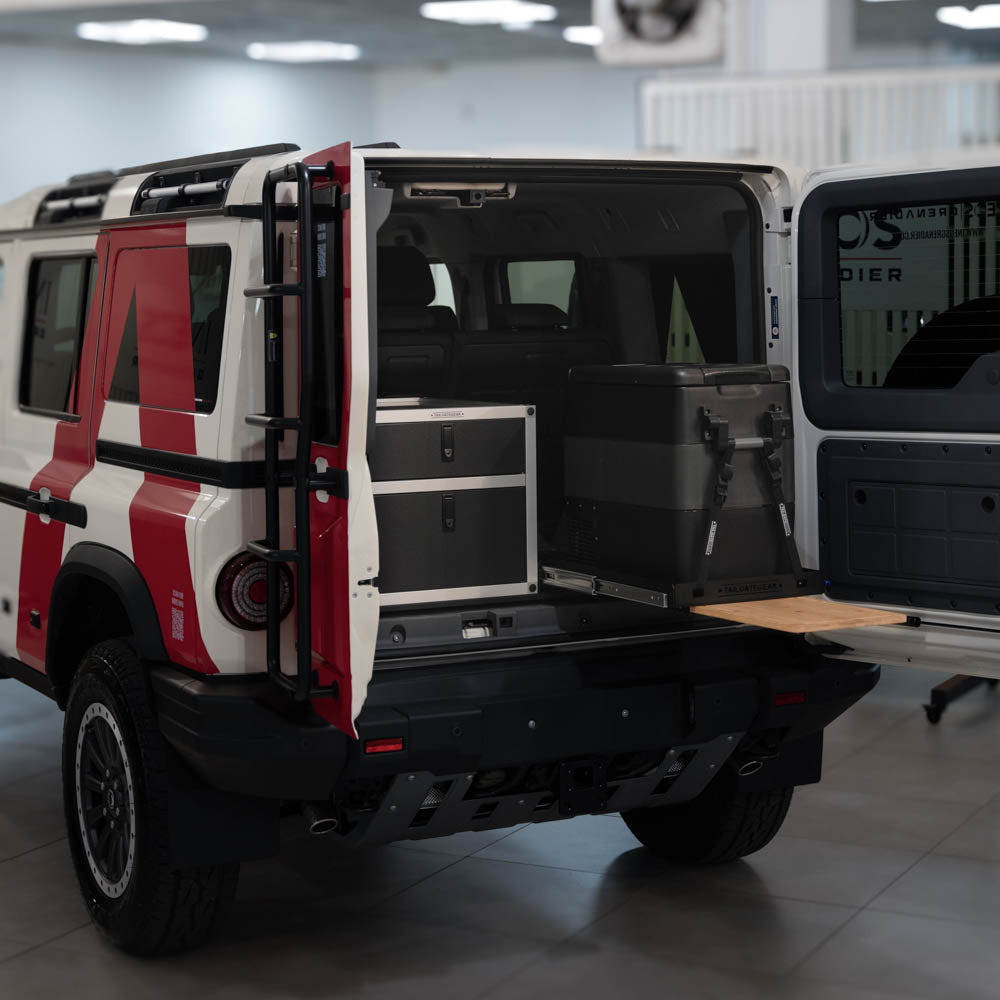

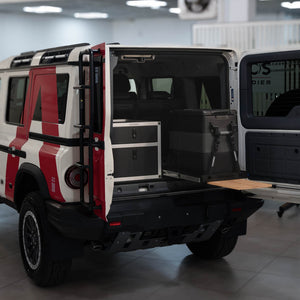

Here is where you create your very own Grenadier Trialmaster combination of modules.

Each configuration includes the Grenadier Trailmaster Platform System. On top of the Platform, a side by side configuration is possible according to your selection.

Choose the modules you wish to have installed on the left side and on the right side. Most combinations can be swapped, if you wish to, at anytime.

No drilling is required and each combo comes with the necessary connecting kit, instruction manual and our dedicated support.

If you wish to add more modules to this combo, you can add them to your basket. Selecting the Grenadier option available for that specific product.

For example, the Fridge and Cargo Slide can be easily mounted over one of the Single Drawers.

Production time is between 21 and 28 days.

This one and all our modules are designed and made in ITALY.

Specs

External 980mmW x 640mmL + various heights based on selected modules.

Total Weight: from 8kg to 80kg based on selected modules.

Check out individual modules for specific sizes and weights:

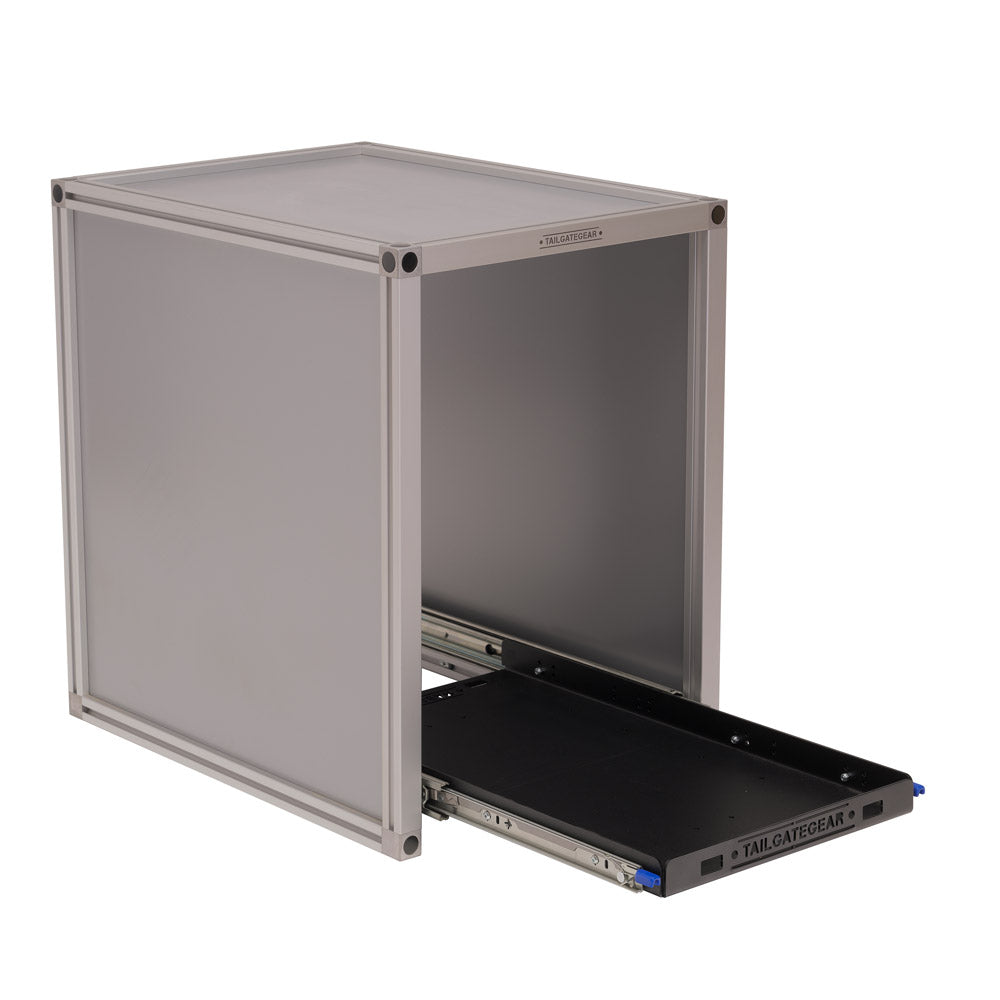

Fridge module - 490mmW x 640mmH x 640mmL - approx 16kg
Fridge module with drawer - 490mmW x 740mmH x 640mmL - approx 19kg

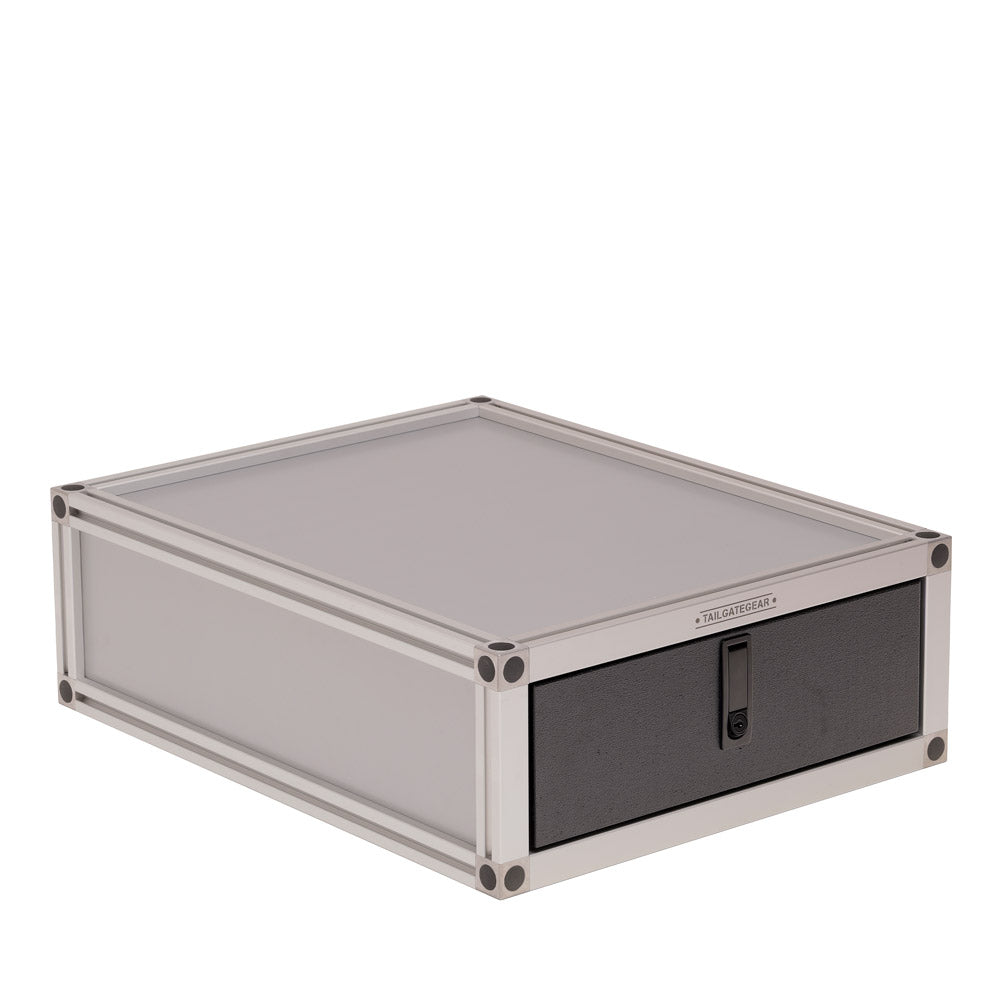

Single low drawer - 490mmW x 230mmH x 640mmL - approx 10kg

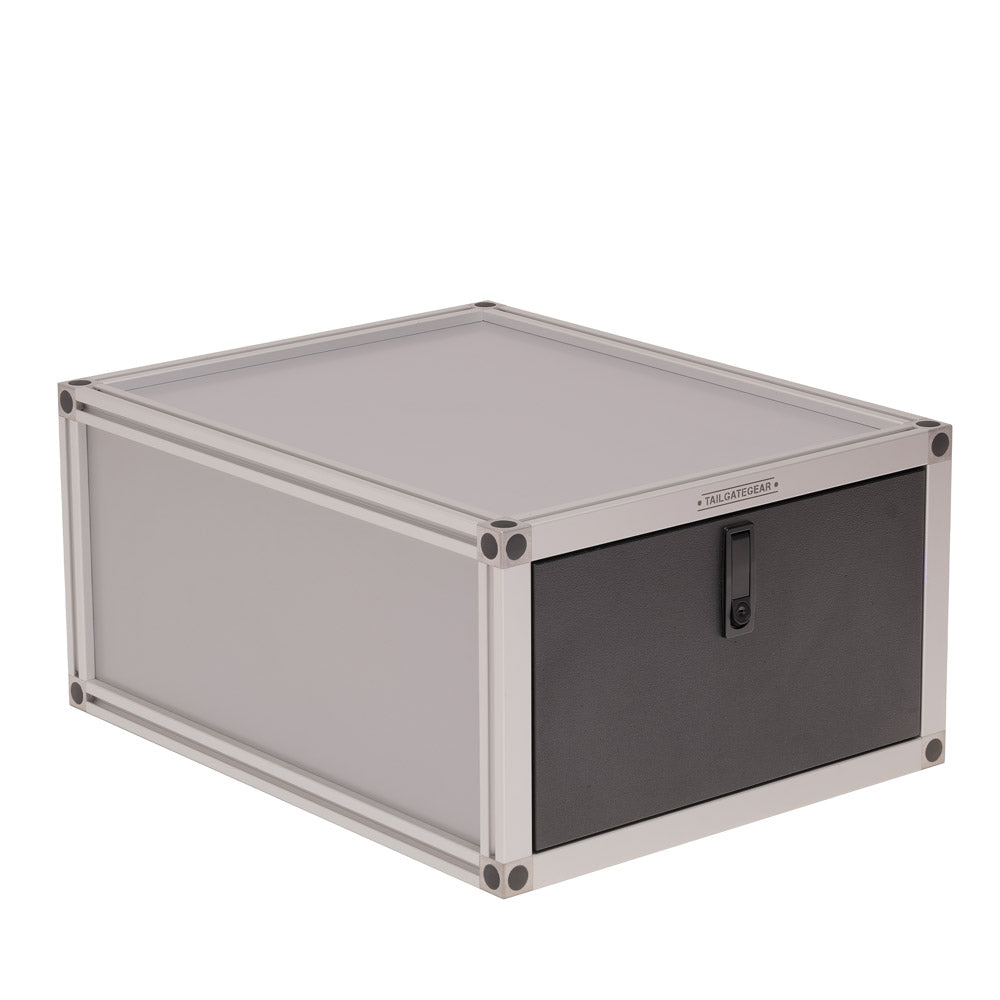

Single high drawer - 490mmW x 300mmH x 640mmL - approx 14kg

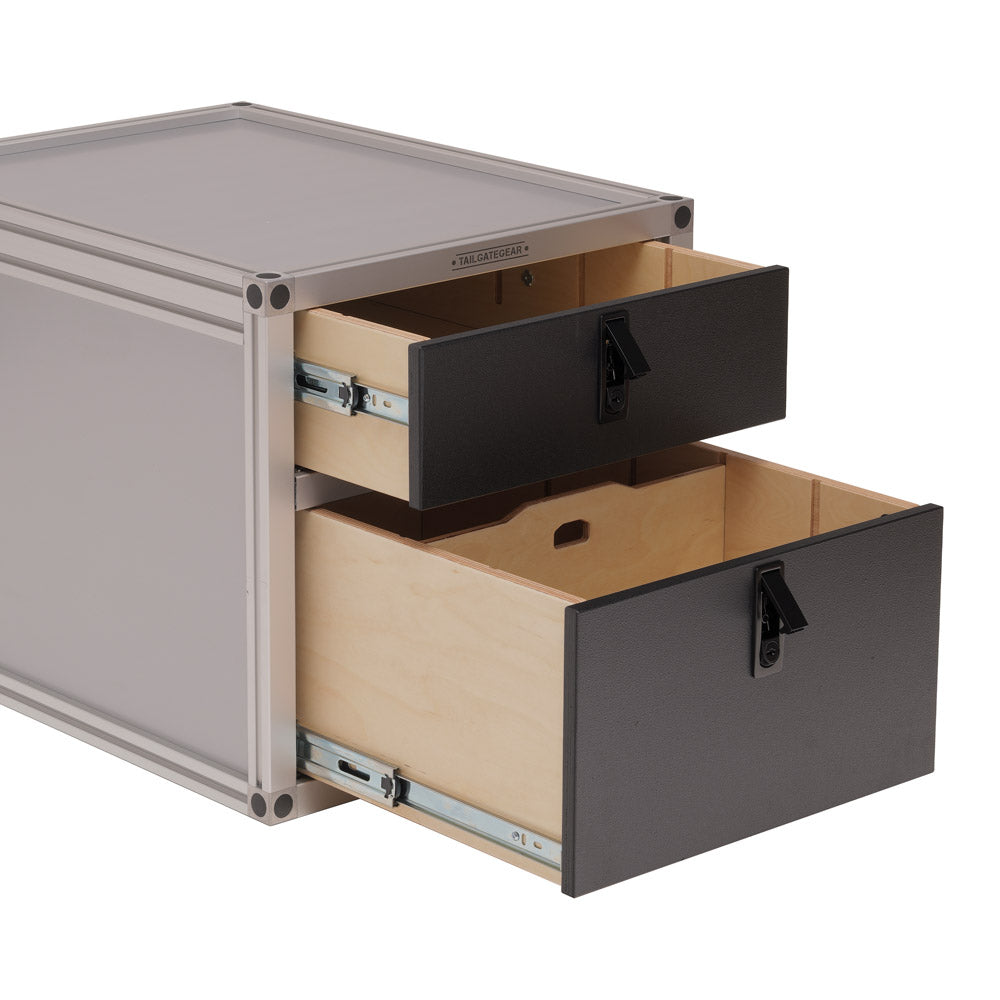

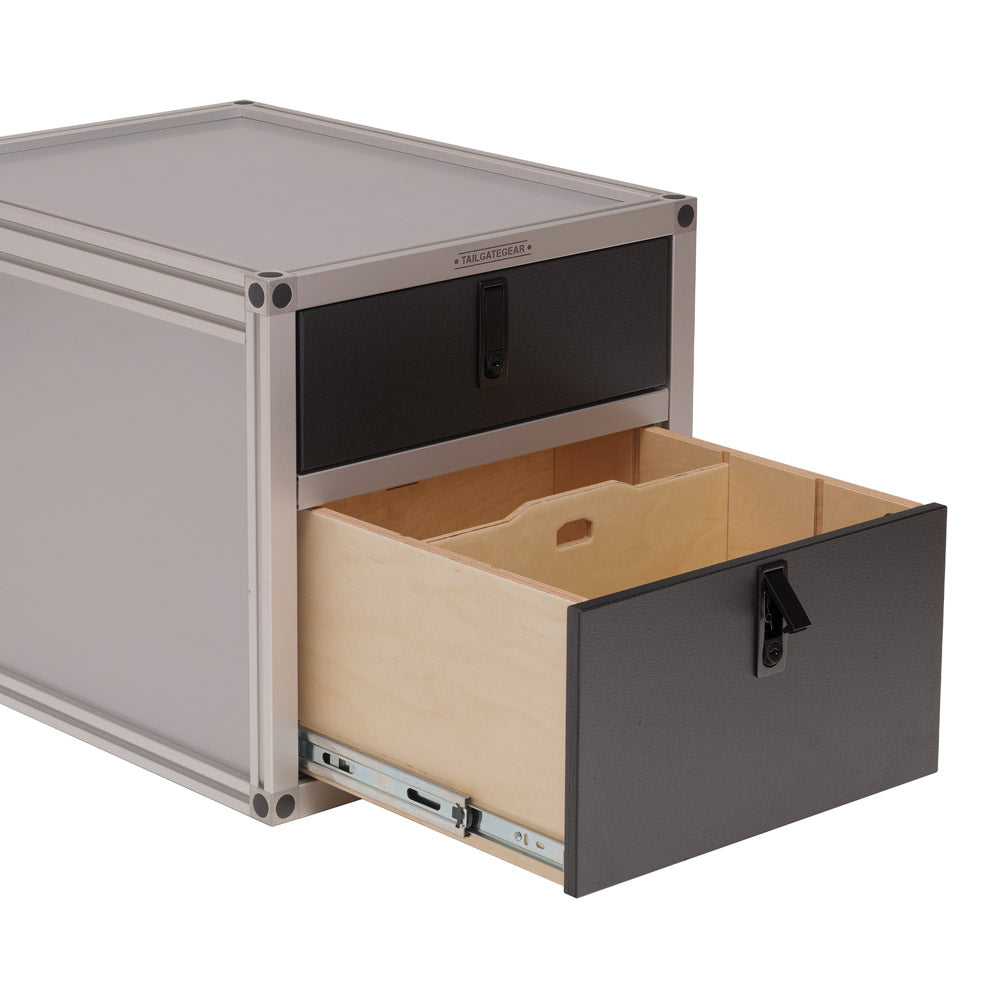

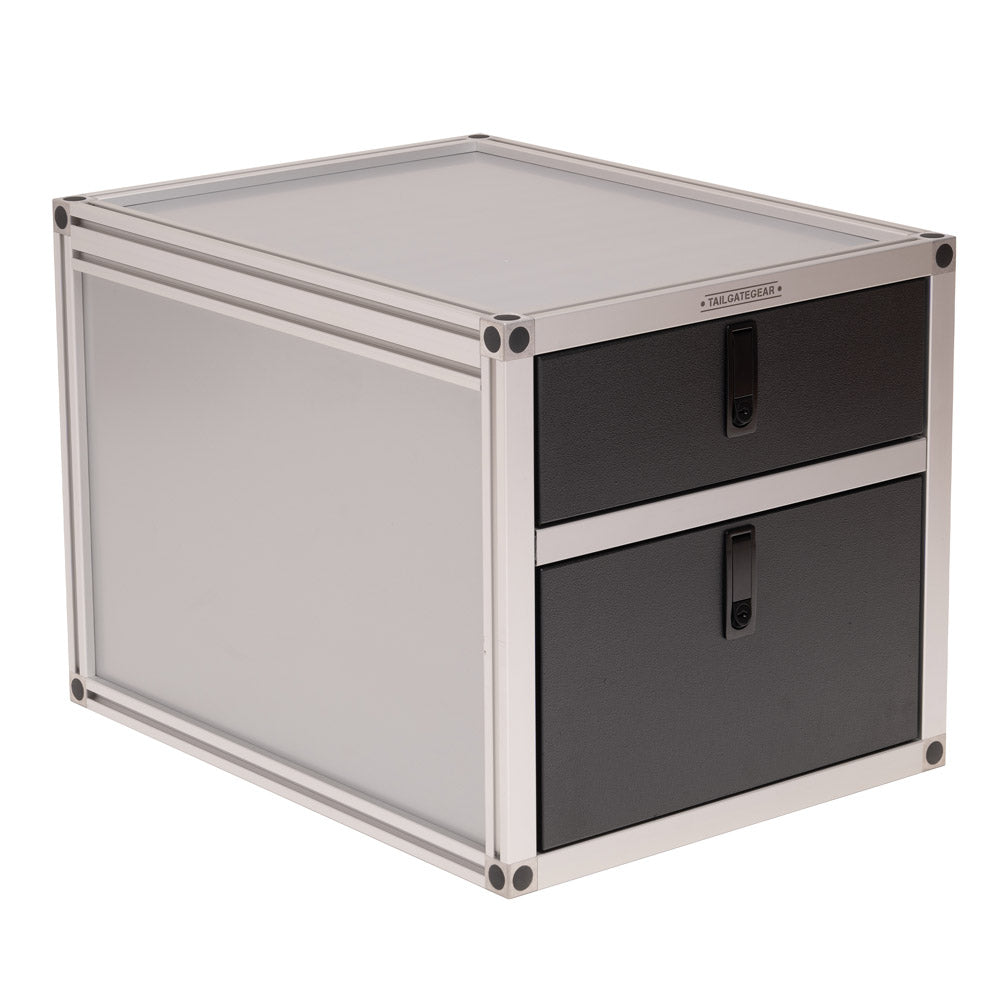

Stacked double drawer - 490mmW x 470mmH x 640mmL - approx 25kg
Single low wide drawer - 980mmW x 230mmH x 640mmL - approx 25kg
Double low wide drawer - 980mmW x 230mmH x 640mmL - approx 30kg

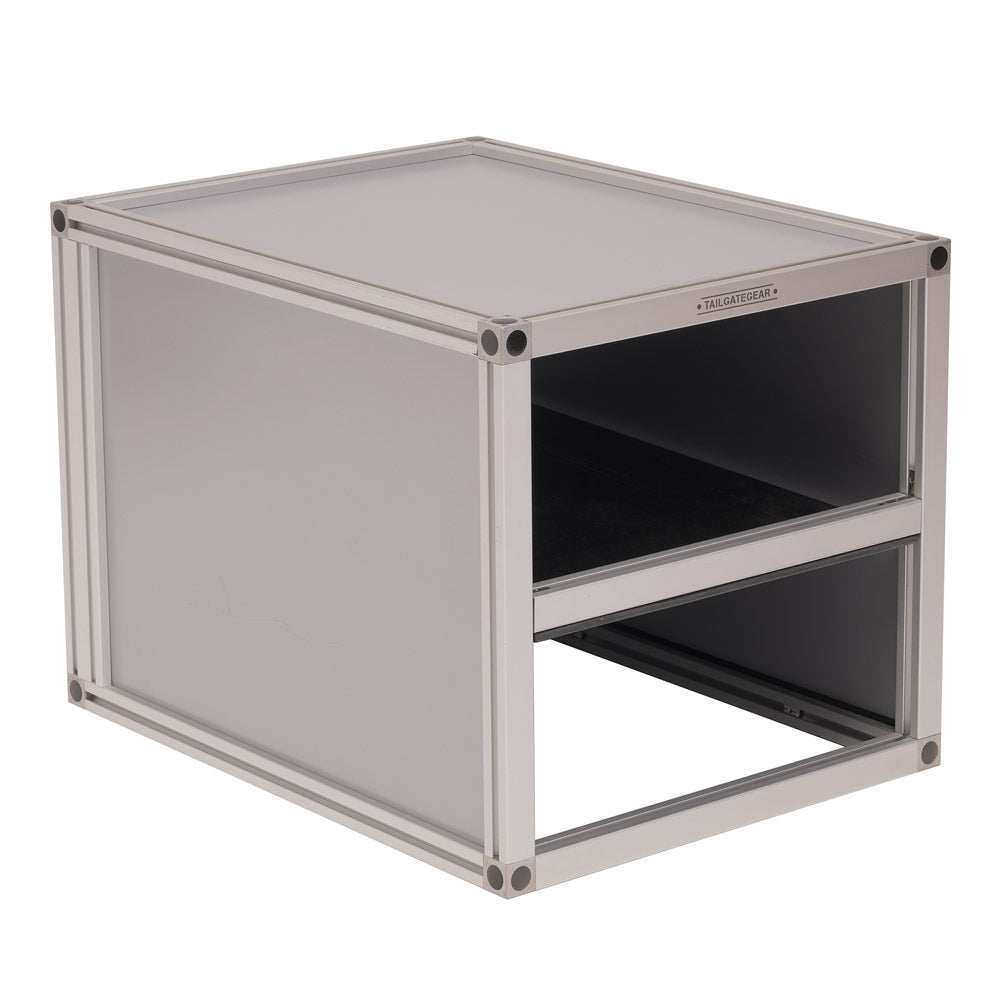

Shelf module - 490mmW x 470mmH x 640mmL - approx 12kg

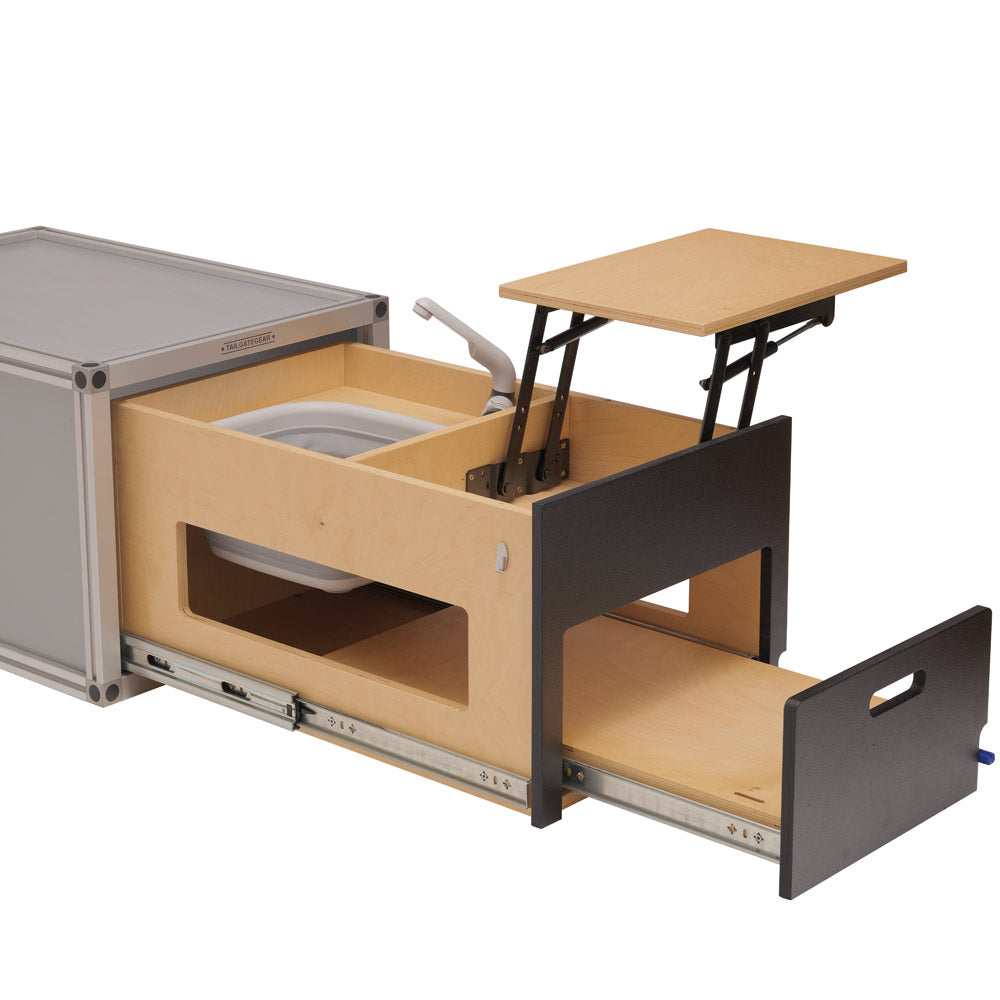

Kitchen module - 490mmW x 410mmH x 640mmL - approx 35kg
Platform System - 1000mmW x 15mmH x 830mmL - approx 8kg

Features

• Aluminum profile frame for max strength and durability
• Shock absorbing slides with 45kg max load for our single and fridge drawers

• 15mm marine birch plywood

• Raptor finishing for rugged look, toughness and easy-clean
• Aluminum laminated (Dibond) side and top panels, UV and water resistant
• Pop-up locks with keys

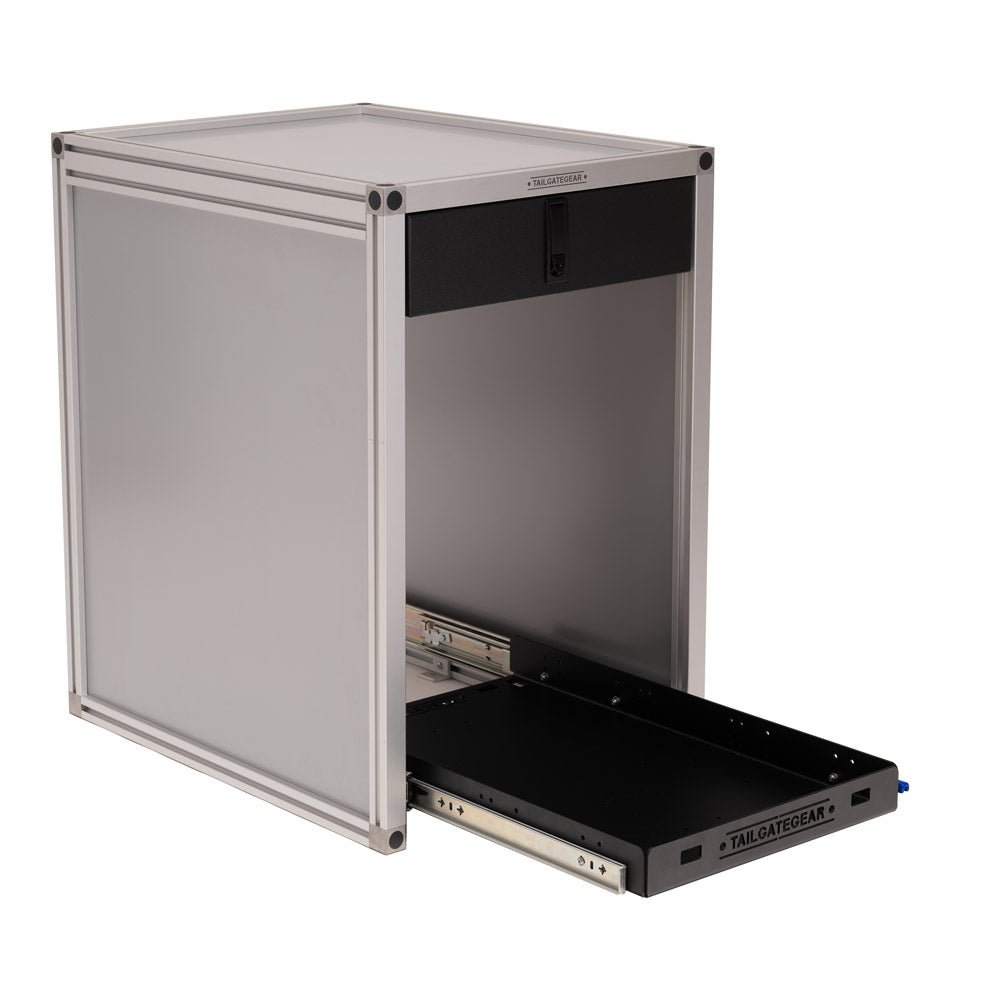

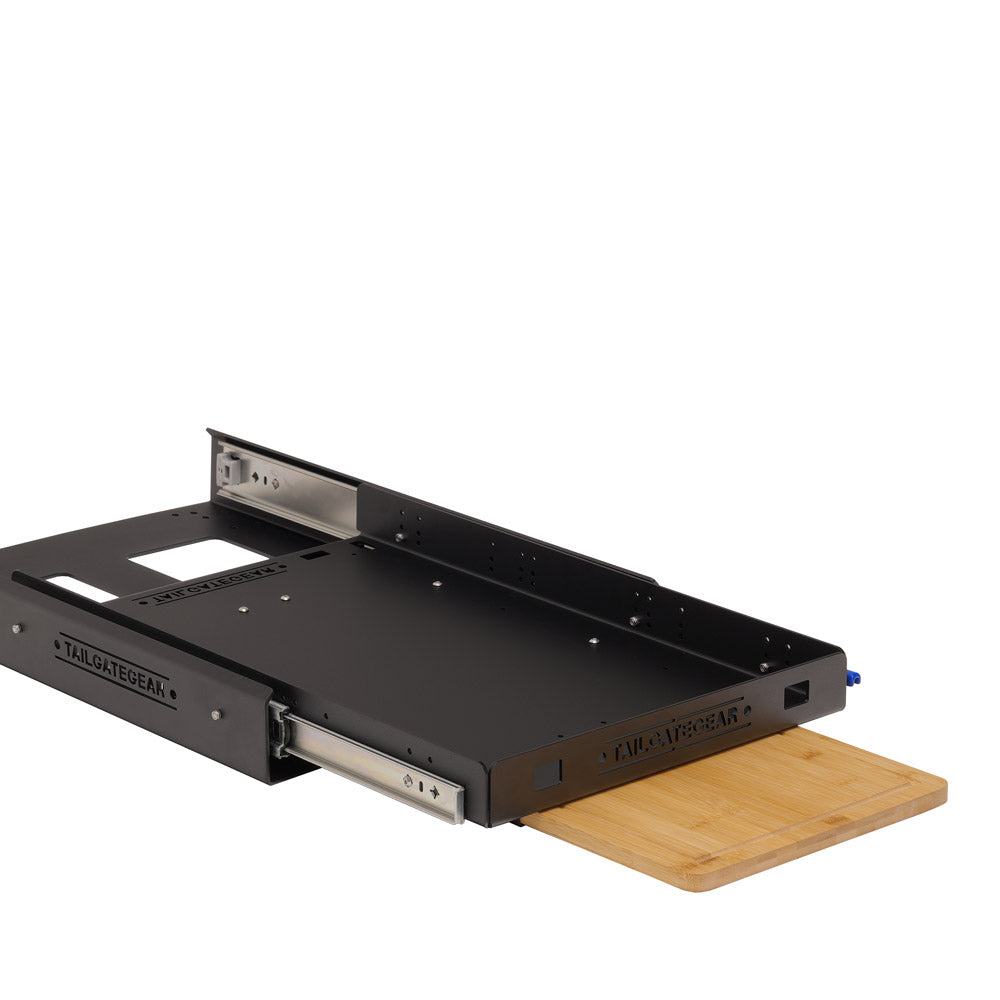

• Aluminum slide out trays for Fridge modules

See individual products for details on features, dimensions, weight, and what's included in the box.

Anchoring

We provide the kit to secure the modules onto the Platform System for the Grenadier.

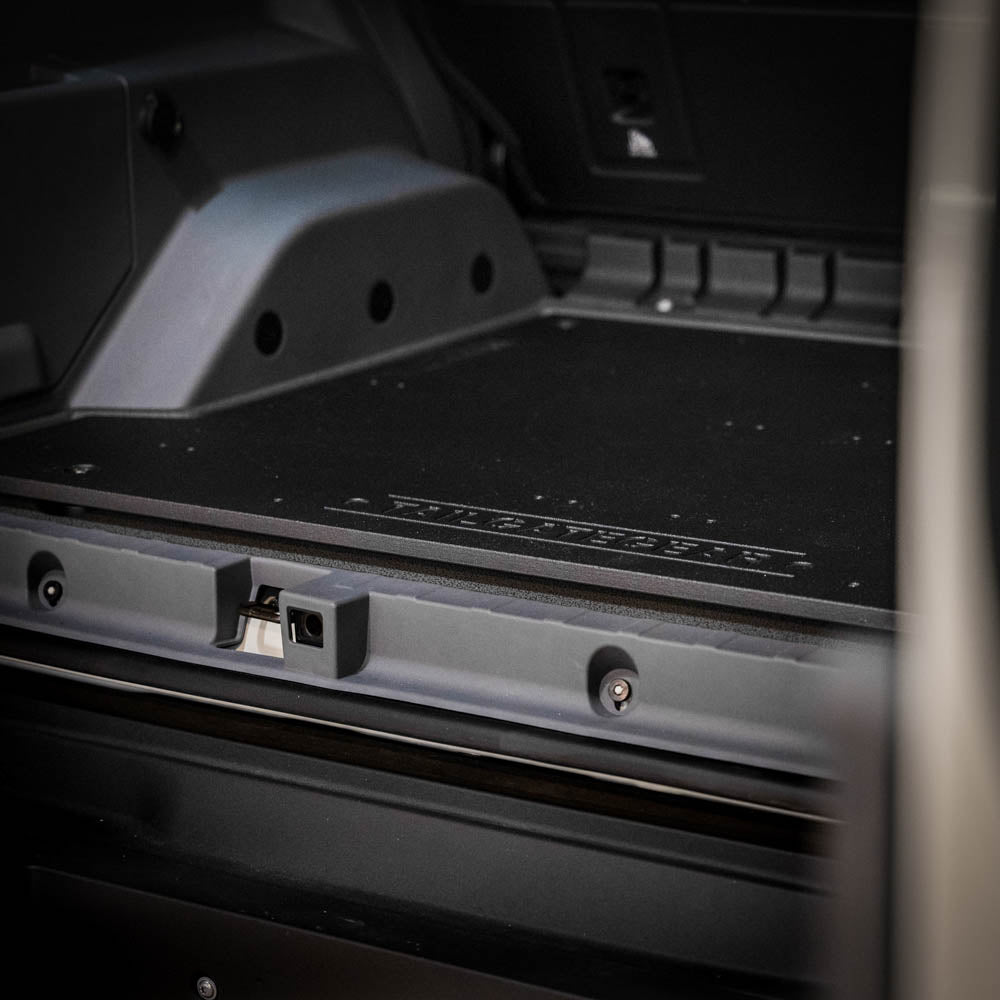

The installation of the Platform System does not require any drilling and the necessary kit is included in the package.

Notes

You can decide to switch the modules' side in the Grenadier depending on the usage.

Please note that the Kitchen Module pop-up surface may interfere with the right portion of the Tailgate swing door.

If you are interested in the wide drawers modules (single or double drawer versions), order the Grenadier Platform System and then add the Wide modules you prefer. Select "Any Vehicle" and they will fit the Grenadier:

FAQ

Q: Do the modules in the combo come assembled?

A: Yes, all our modules are shipped already assembled with the necessary kit to install them.

Q: What can I fit into the drawers?

A: In the low drawer you can fit 1,5lt bottles sideways, butane gas tanks, most of the small and flat common camping gear available on the market.
In the high drawer you can fit small 500ml water bottle (standing), Frontrunner Flat pack, standard 500wh portable batteries, most of the common camping gear available on the market.

Q: How do the drawer's partitions work?

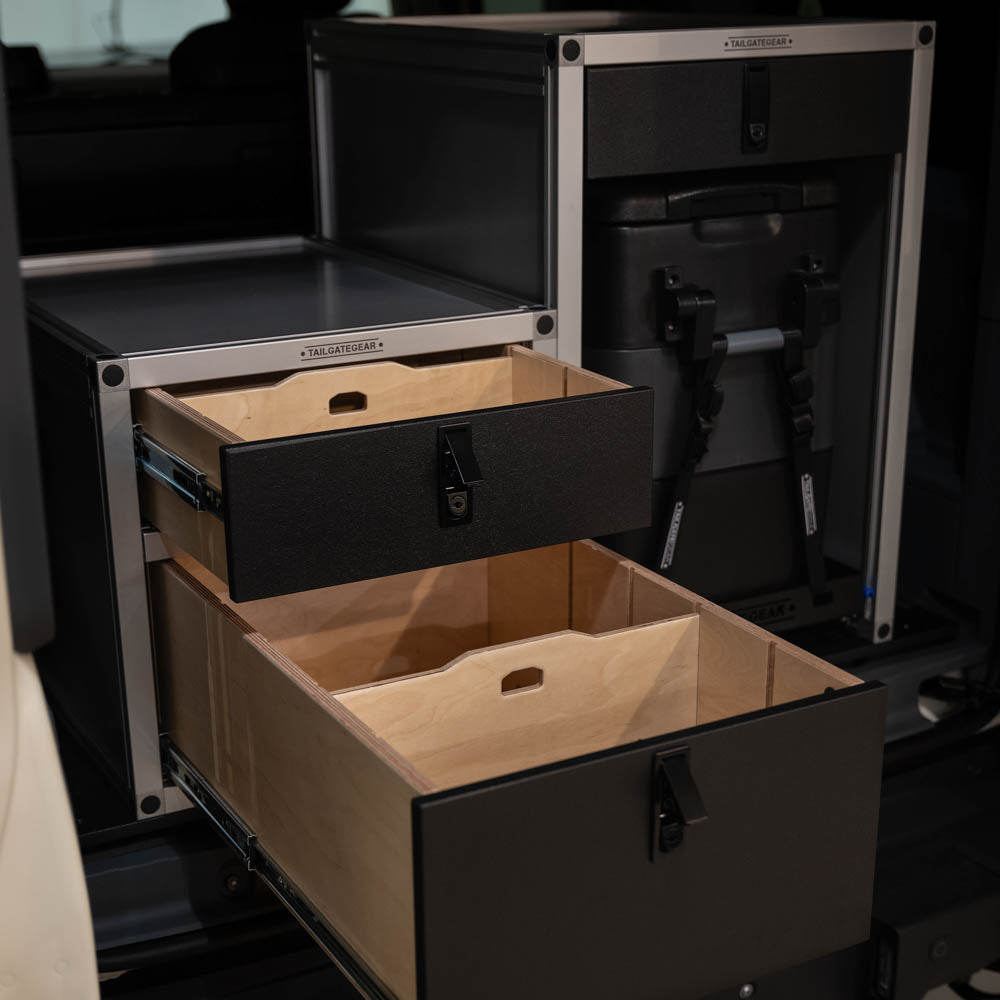

A: The partitions can be moved to create smaller area within the drawer. They leave room to run cables from the front of the drawer to the back and also out form the back.

Q: How can I use the top of the module?

A: The top of the modules can be use to store additional gear and it holds up to 100kg of weight. The top panel is slightly lower than the contour and that helps to keep bags and boxes from moving around.

Q: Can I connect the modules to each other?

A: Sure. Our modules are stackable and can be connected as combos to each other. Combos come with a connecting kit. They are not only bolted to the Platform System but also connected to each other for stability and to avoid rattling when off-roading.

Q: Do you customize sizes?

A: We do customize our modules. There are additional charges based on the modifications and the production time may increase.

Q: How can I check if the module fits in my vehicle?

A: This combo is designed for the Ineos Grenadier Trialmaster but can fit on many other vehicle if one day you wish to change your ride or sell the modules.

Got more questions? Leave a message on our Contact page.

STOP TABS

DISCOVER MORE

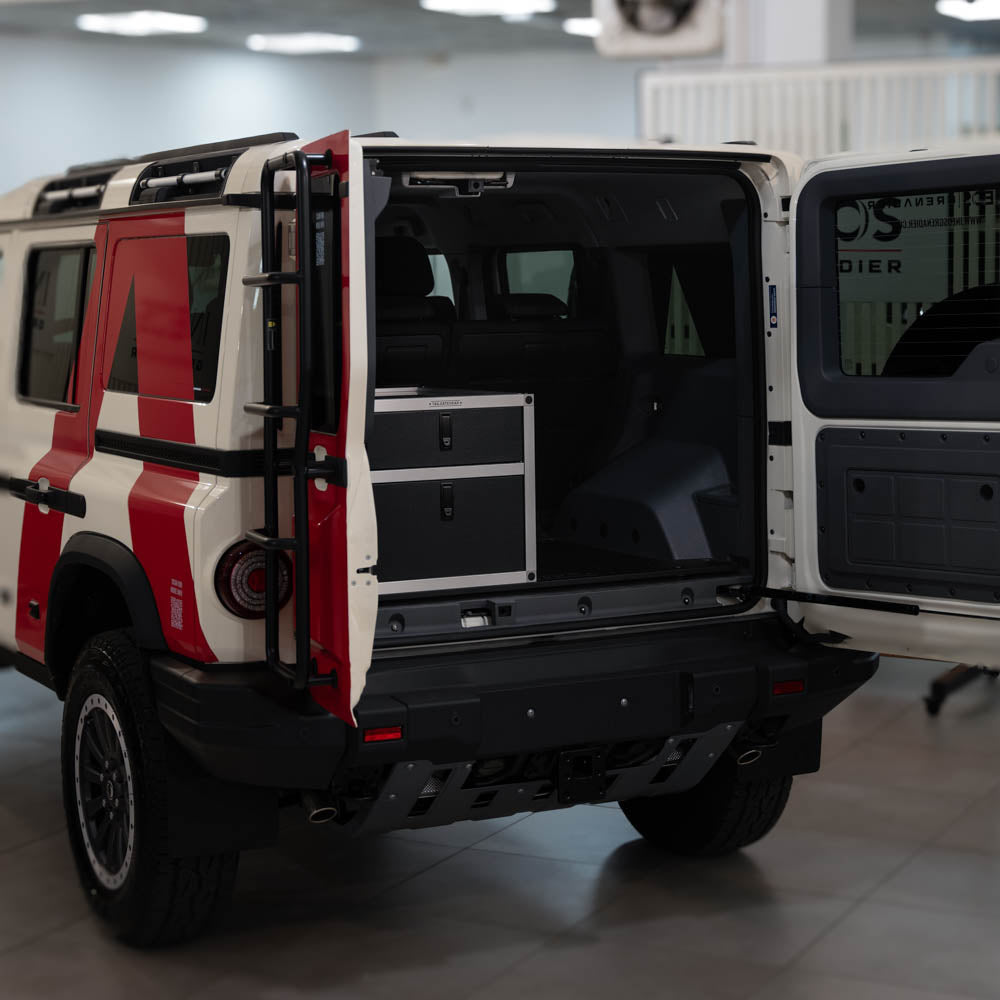

See our gear installed in a brand new Ineos Grenadier Trialmaster.
